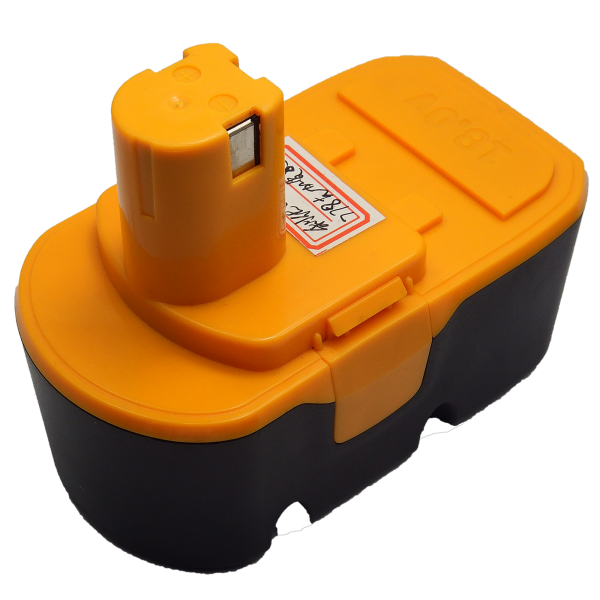

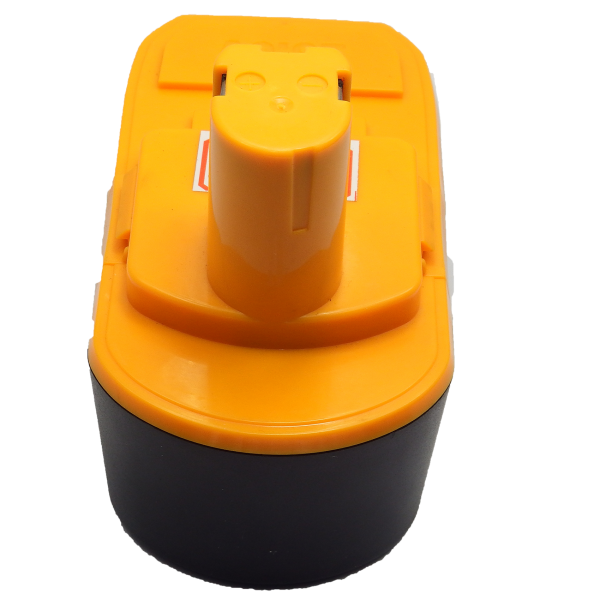

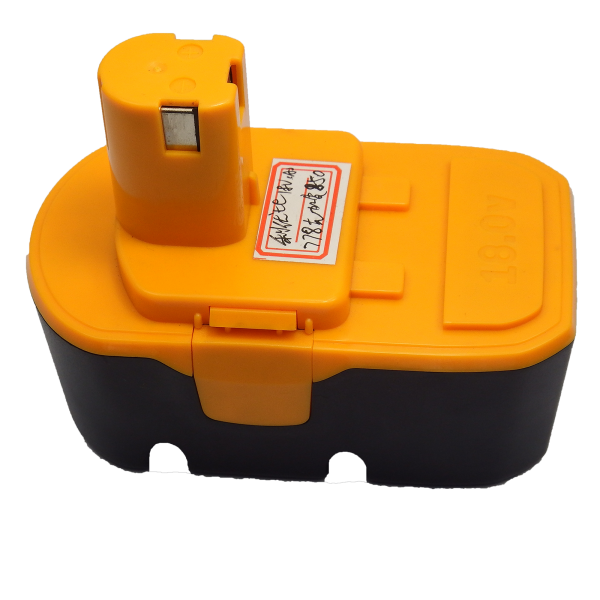

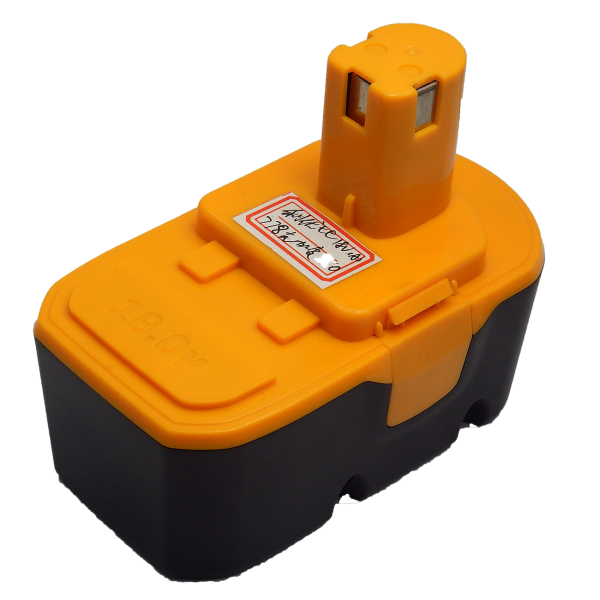

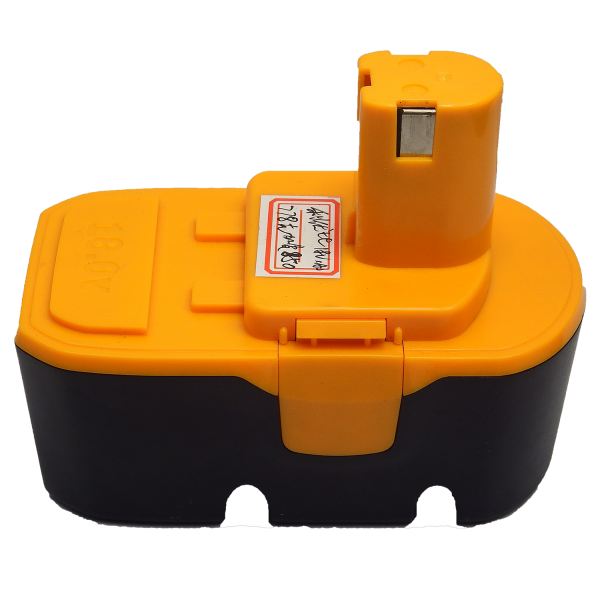

18V 2Ah (5S1P) Replacement Li-ion Battery Pack for Ryobi




    Item
    Specifications
    Compatibility
    P100, P102, P103, P104, P105, P107, P108
    Typical Capacity
    2000mAh @ 1C Discharge
    Minimum Capacity
    1900mAh @ 1C Discharge
    Nominal Voltage
    18.0V
    Standard Charge
    CC/CV, 800mA, 21.0V
    Standard Discharge
    CC, 1C, 15.0V
    End-of-charge Voltage
    21.0V ± 0.3V
    End-of-charge Current
    0.02C (At CV mode)
    End-of-discharge Voltage
    12.5V
    Charging Time
    6 hours (standard charge)
    Standard Discharge Current
    2000mA (1.0C5rate) 1C
    Max Discharge Current
    30.0A
    Initial Impedance
    Max: 150m
    Weight
    Approx : 750±10g

    Compatible Models
    This battery is compatible with following RYO power tools:

    P200, P201, P203, P204, P206, P210, P211, P220, P221, P230, P234G, P236, P240, P241, P246, P250, P208B, P271, P340, P300, P301, P310, P400, P410, P420, P430, P500, P501, P506, P510, P514, P520, P521, P522, P530, P540, P570, P600, P610, P631K, P650, P700, P701G, P703, P704, P710, P711, P715, P716, P730, P731, P740, P741, P780, P813, P835, P2000, P2002, P2102, P2400, P2060, P2100, P2105, P2500, P2600, P2603, P3200, P3300, P3310
